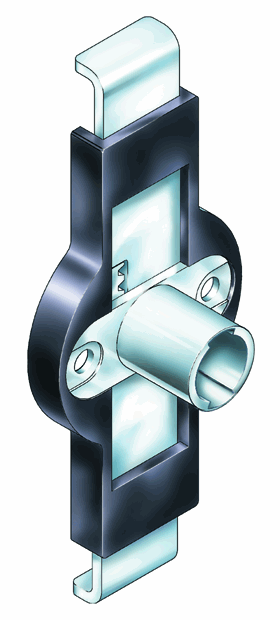

CompX Timberline Desk Drawer / Door Locks Double Drawer Side Mounted Gang Lock CB-271

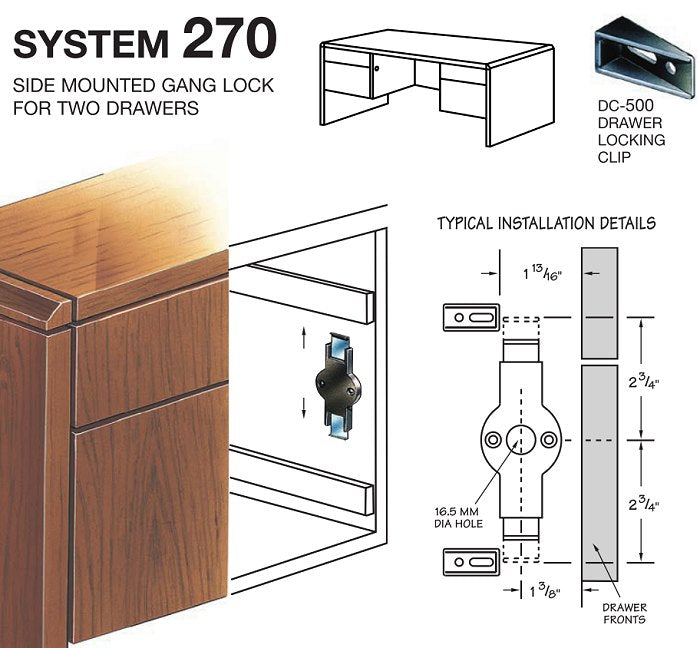

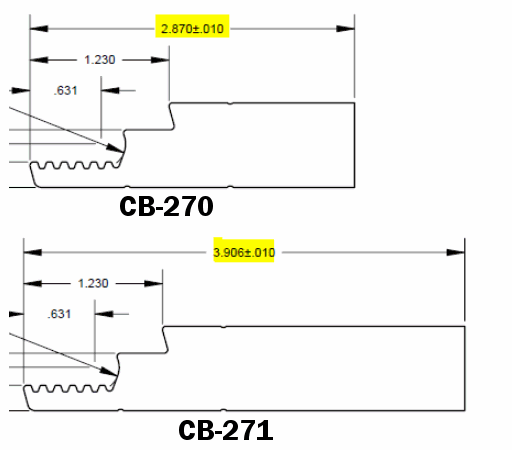

Please click on the thumbnail at left for installation diagram and application scenario. The CB-271 has the same body as the CB-270 but longer cams - CB-270 spans 4.5" when unlocked, and 5.5" when locked. CB-271 spans 6.5" when unlocked and 7.5" when locked. Drawer Locking Clips (DC-500) sold separately here . See diagram for details. Drill Bit DB-165 - used to bore lock hole Bezel - provides cleaner finish around lock. PLEASE NOTE: If you order a lock kit, three items will be added to your cart – a lock housing, lock core and keys. Please do not remove any of these items if you want a complete lock kit.
