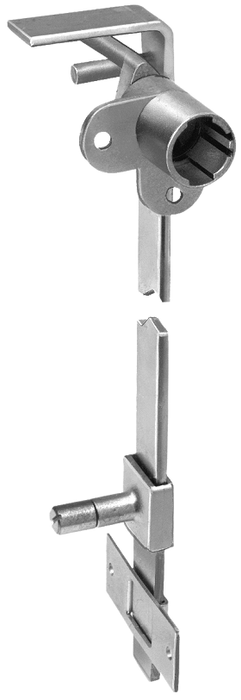

CompX National Desk Drawer / Door Locks Front Mounted Drawer Gang Lock D8838

. APPLICATION – For locking drawers in desk pedestals and other multiple drawer applications. Lock mounts in right corner. Can also be mounted for left corner application. Surface mounted. Requires 21/32" diameter hole for cylinder, and when required, a dado for bar, measuring 7/8" x 3/16" deep in inside of panel. . OPERATION – Turning the key locks all drawers simultaneously (drawers must be in closed position). Bar moves studs from above or below the plastic stops, which are mounted on drawer sides, thus preventing drawer movement.. KEYING – Uses C8850 RemovaCore Lock Cores - order separately.. PACKAGING – Housing assembly supplied with three set screws for 1/2" projection, three slides, saddle, three plastic stops, and mounting screws. If 1" projection is required, order locking studs separately. Optional plastic trim ring sold separately below - see 1st thumbnail to the left. Can also use the C7020-2C 1" pin cam - sold separately below - see 2nd thumbnail to the left.
