CompX Timberline Desk Drawer / Door Locks Double Drawer Side Mounted Gang Lock CB-270

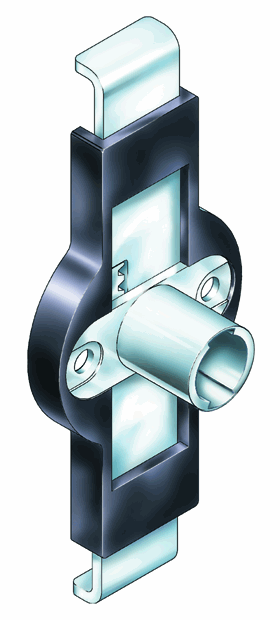

Surface mounted lock housing for furniture drawers and doors. 180 degree CCW key rotation to lock and 180 degree CW rotation to unlock. Lock Housing is made from black toughened nylon with 16.5mm diameter barrel. Most commonly mounted on ¾” thick material - order the CB-270-1 for 1" material thickness. The CB-270 has the same body as the CB-271 but shorter cams - CB-270 spans 4.5" when unlocked, and 5.5" when locked. CB-271 spans 6.5" when unlocked and 7.5" when locked. Drawer Locking Clips (CB-500) sold separately here . See diagram for details. Optional Accessories: Drill Bit DB-165 - used to bore lock hole Bezel - provides cleaner finish around lock. PLEASE NOTE: If you order a lock kit, three items will be added to your cart – a lock housing, lock core and keys. Please do not remove any of these items if you want a complete lock kit.
