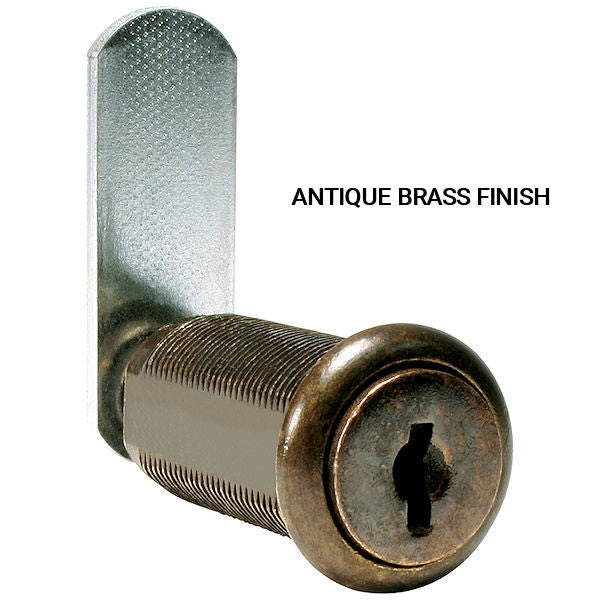

Disc Tumbler 1-7/16" Cam Locks

. APPLICATION – For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the 1 7/16" cylinder length.. OPERATION – choice of either 90° or 180° cam turn. Key removable in both locked and unlocked positions.. KEYING – Will key together with all other disc tumbler locks using RO3 (CompX National MPN D8785) key blank . MKKD Locks are keyed to Master Key E41A (CompX MPN D8799) using RO7 (CompX National MPN D8783) key blank .. PACKAGING – Supplied with two keys, trim washer, spur washer (for wood), mounting nut, two cams and two stop washers. FlexaCam spacers also supplied - please see the first image at lower left.. Straight cam measures 1 1/2" from center of mounting hole to end. . Offset cam measures 1 1/8" from center of mounting hole to end with 11/32" offset. This lock can be modified to use the SlamCAM self-locking cam - see second thumbnail at left. C8075 Instruction Sheet
